NEWBOULD WIREONE SYSTEM
Stainless Steel Indexer, Workholder, for WIRE EDM
and Grinding
|
| |
|
|
|
|
The
Newbould WIREONE
uses precision ground face gears, for Quick, Easy
and Precise positioning of the workpiece in the EDM
or Grinder.
*
Hardened Stainless Steel.
* Angular indexing every 5 degrees with 3 arc second
accuracy.
* 2" center height when mounted on 1/2"
foot.
* Accepts various work-holding methods.
* Additional accessories permit adjusting tilt and
center height.
|
|
|
Stainless
5-C Indexer:
The 5-C adapter can be removed and replaced without
disturbing the part clamped in the collet.
This timesaving feature allows the part to be switched
from one Newbould WIREONE head to another WIREONE
head without losing position. Or, put the concentric
body of the adapter in a vee block as shown for inspection
of the part.
|
 |
|
 |

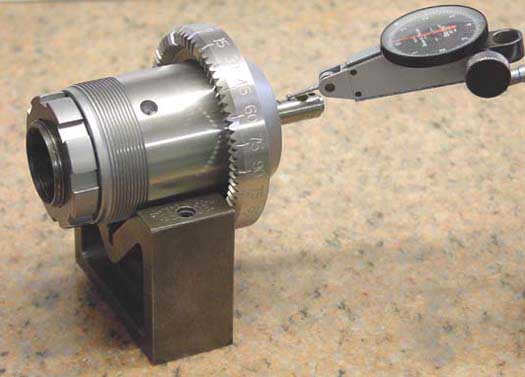

Illustrated is the single gear head mounted
on a foot, with the 5-C adapter, (2) nuts and
special wrench.
Tool furnished with brass and bristle brushes
for cleaning. (not illustrated)
Call for special sale
price on tools in stock
352-637-5353
|
 |
|
|
|
The
WIREONE System was designed and patented
by Rj Newbould, inventor of the "Newbould Indexer".

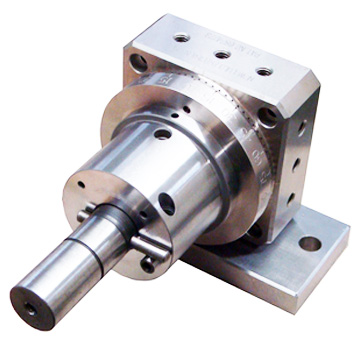

Illustrated
to the left is a WIREONE head with a custom workholding
fixture.
|
|
WIREONE
makes an accurate, easy to use, 20MM holding fixture
for grinding, milling or EDM use.
(20MM
shank not included)
|
 |
|
 |

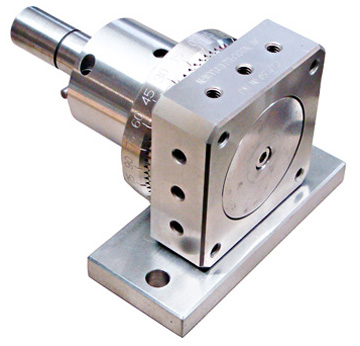

A
stainless steel 1/4-20 screw from the back, as shown,
is all that's needed to clamp and release the indexing
face with the integral 20MM holder.
The
20MM shank maintains good concentricity while being
indexed.
|
|
| |
|
|
