Patented NEWBOULD MODULAR WIREONE SYSTEM
Stainless Steel Indexer, Workholder, for WIRE EDM and Grinding

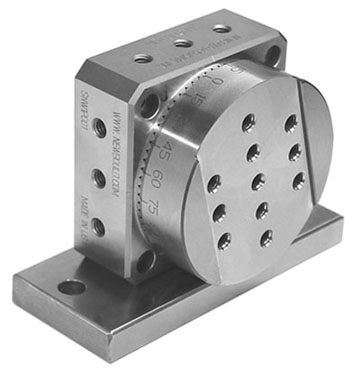

The Newbould WIREONE uses precision ground face gears, for Quick, Easy and Precise positioning of the workpiece in the EDM or Grinder.

* Hardened Stainless Steel.

* Angular indexing every 5 degrees with 3 arc second accuracy.

* 2" center height when mounted on 1/2" foot.

* Accepts various work-holding methods.

* Additional accessories permit adjusting tilt and center height.

Stainless 5-C Indexer:
The 5-C adapter can be removed and replaced without disturbing the part clamped in the collet.

This timesaving feature allows the part to be switched from one Newbould WIREONE head to another WIREONE head without losing position. Or, put the concentric body of the adapter in a vee block as shown for inspection of the part.

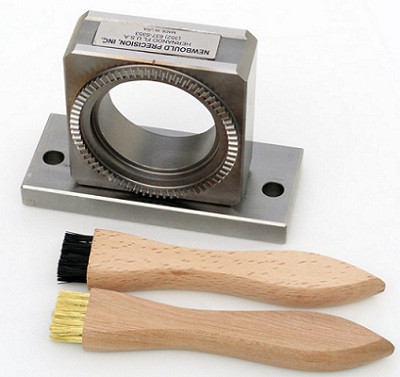

Illustrated is the single gear head mounted on a foot, with the 5-C adapter, (2) nuts and special wrench.

Tool furnished with brass and bristle brushes for cleaning. (not illustrated)

Call for pricing

352-637-5353

Workholding methods for the Newbould Wireone are almost unlimited.

We can design and construct special fixturing for your needs such as this one for Hutchinson.

"Three words sum-up the Newbould Wireone fixture. It's QUICK, EASY, and PRECISE, with the emphasis on precise. The Wireone fixture took a difficult part with multiple angled set-ups and made it simple, with repeatable accuracy.
The personal attention that RJ gave us in designing and building the fixturing for this part was ver impressive.
We would recommend the Wireone fixture to any toolroom."

Cameron Hempel
Wire EDM
Hutchinson Technology Inc.
Hutchinson, MN

        Hutchinson Technology is the leading worldwide supplier of suspension assemblies for disk drives.
        Suspension assemblies are precise metal springs that hold a disk drive's recording head at microscopic distances above the drive's disks.
        Hutchinson Technology designs and manufactures suspension assemblies for all sizes of disk drives produced by all the major disk drive makers.

Stainless 5-C Indexer:

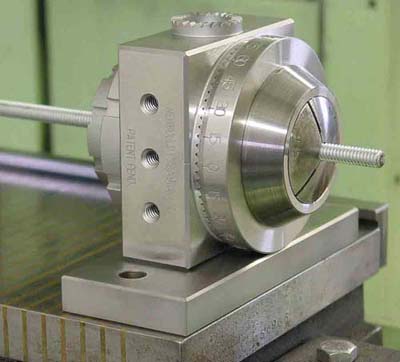

The 5-C adapter can be removed and replaced without unclamping the workpiece, and without losing position.

Newbould Wireone on the Grinder

Newbould Wireone Tilt and Elevation Attachment

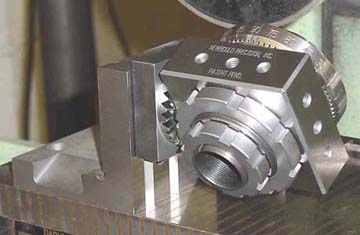

With this attachment set, you can tilt the Newbould Wireone two-gear head in 15 degree increments, and adjust the center height of the indexing head from zero to six inches above the lower wire guide.

Many parts can be manipulated so that various surfaces can be machined on different angular setups without the need to change holders. This normally reduces accumulated error.

Infinite Tilt Angles are obtained via the "lockplate" which is a standard part of the Tilt Package
