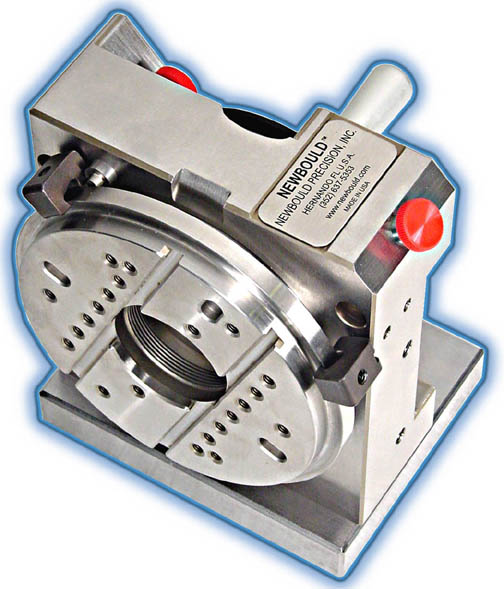

QUESTIONS
|
ANSWERS |
ILLUSTRATIONS-NOTES |
|
|
|
| |
|
|
|
T.I.R.:
|
<1
micron ."000,040"
|
|
|
Center
height (not on foot):
|
3.004
(3/4" higher on foot)
|
|
|
Weight
of bare spindle:
|
14
Lbs. |
|
|
Indexing
postions:
|
72
(every 5 degrees) |
|
|
Indexing
accuracy:
|
+-
10 arc seconds |
|
|

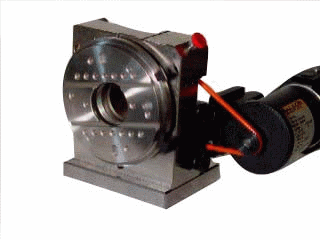

Motor
drive:
|
Yes,
with optional motor |
Large file,animated photo |
|
Thru-hole
diameter:
|
1.640" |
Bore
specs drawing |
|

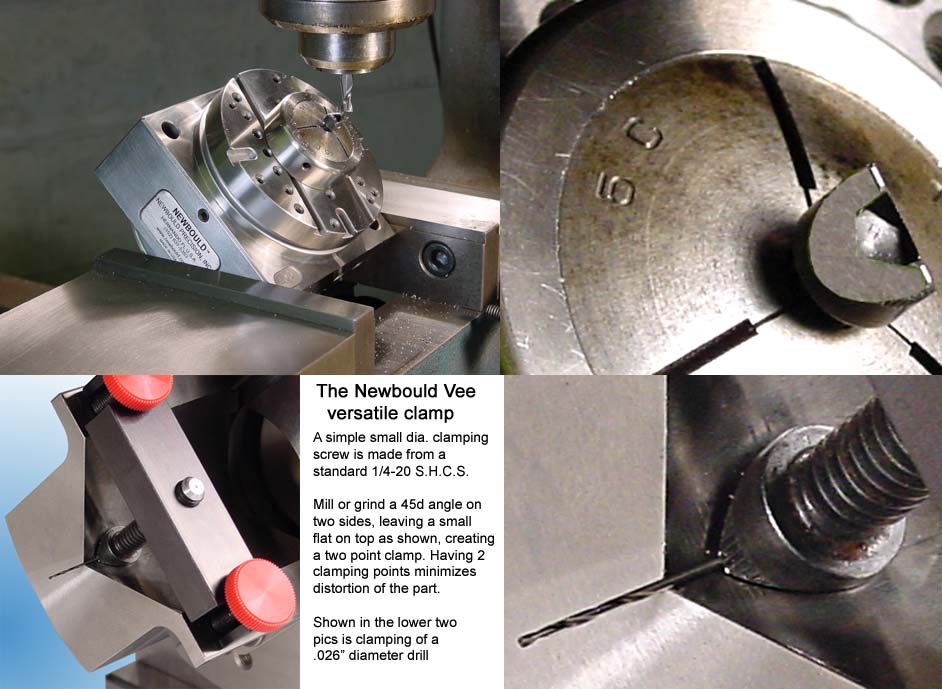

Vee block capacity:
|
Less
than .030" to 2" + |

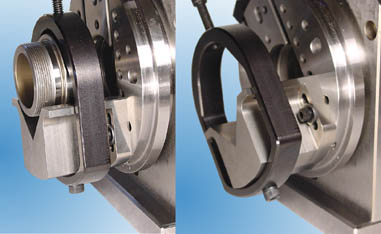

Small
diameters large
diameters |
|
Accepts
5-C Collets:
|
Yes,
with optional adapter |
Drawing/Photo |
|
Machine
graduated dial:
|
Every
one degree |

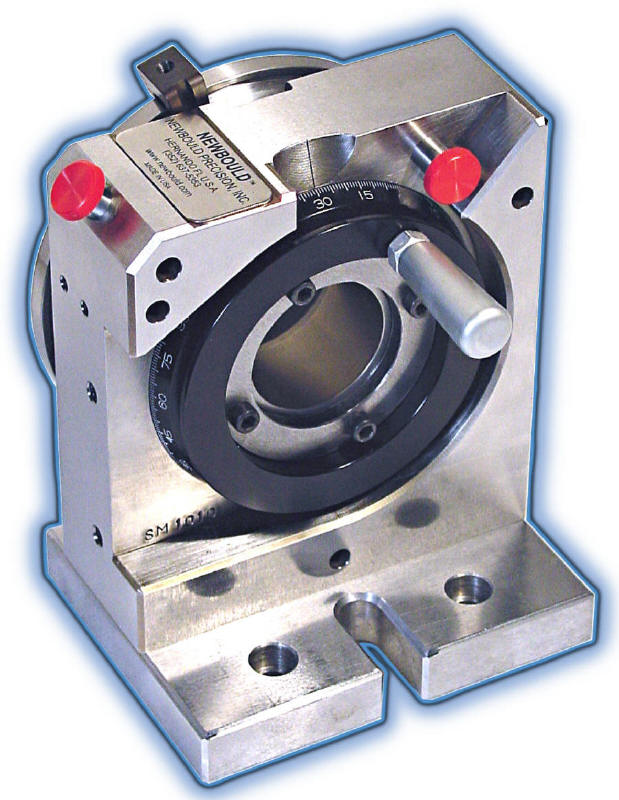

Rear
view photo |
|
Arcing/Positioning
stops:
|
Yes
(2) standard |
Photo |
|
Use
horizontally or vertically:
|
Yes |
Photo |
|
Adjustment
on indexing positions:
|
Yes
(Zero Null feature) |
Illustration
of zero null |
|

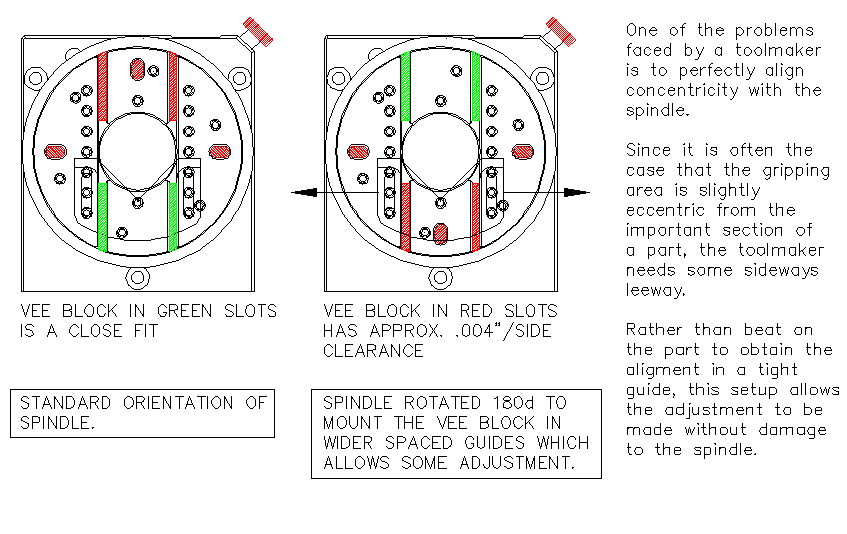

Sideways
adjustment on Vee block:
|
Approx.
.004"/side |
Illustration |
|

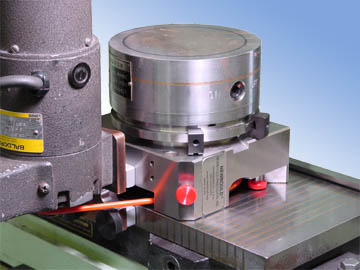

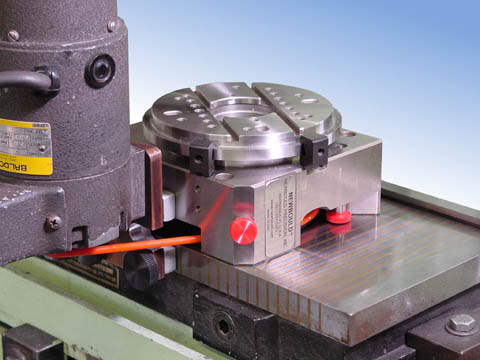

Use
with magnetic chuck:
|
Yes |
|
|
Use
with Newbould Pallet system:
|
Yes |
(download
catalog) |
|
Use
with 4"Buck Adjus-Tru chuck:
|
Yes |
soon |
|
Radius-Tangent
wheel dressing:
|
Yes,
optional accessory |
Photos |
|
Submersible
in wire EDM:
|
Not
recommended |
Discussion
of subject |
|
Submersible
in RAM EDM:
|
Yes,
with air pressure |
Ground
to spindle instead of just the base. |
|
|
|
|
