The Newbould Radius-Tangent wheel
dressing attachment.
|
|||
|

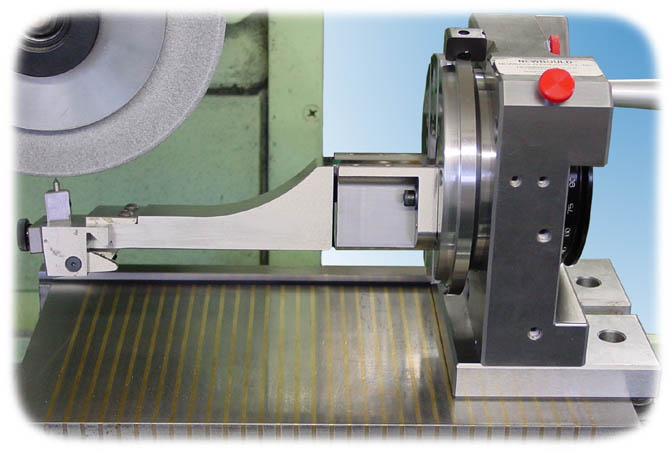

The Newbould dressing attachment will dress up to a 12" dia. wheel with ease. Since it bolts into the vee block, it does not require a clamp which could interfere. It will dress large radii as easily as small radii. |
 |
|||
|

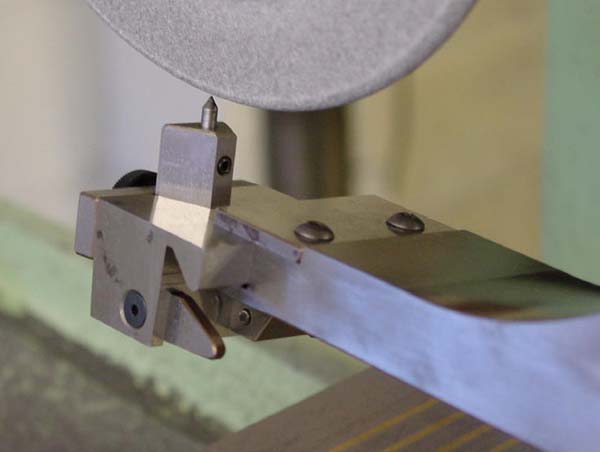

The tangent slide is adjustable for centralization of the diamond. Diamonds with a large shank can be held in the vee without the holder. Diamonds are held on a 5 degree angle for best results with a chisel point diamond. |
 |
|||

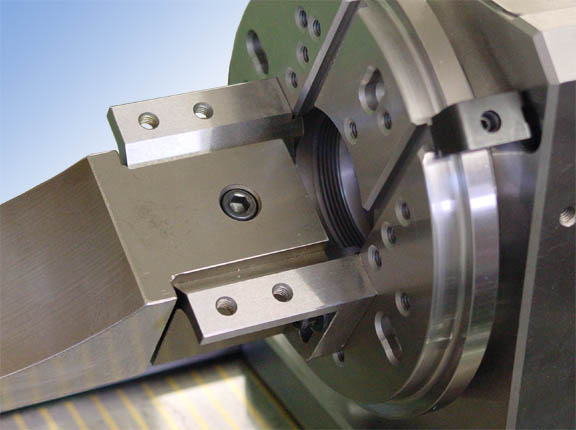

| Clamping in the vee with a single 1/4-20 S.H.C.S.. |
 |
|||
